BDA | Bravelink™ 2430

79672

Product Information

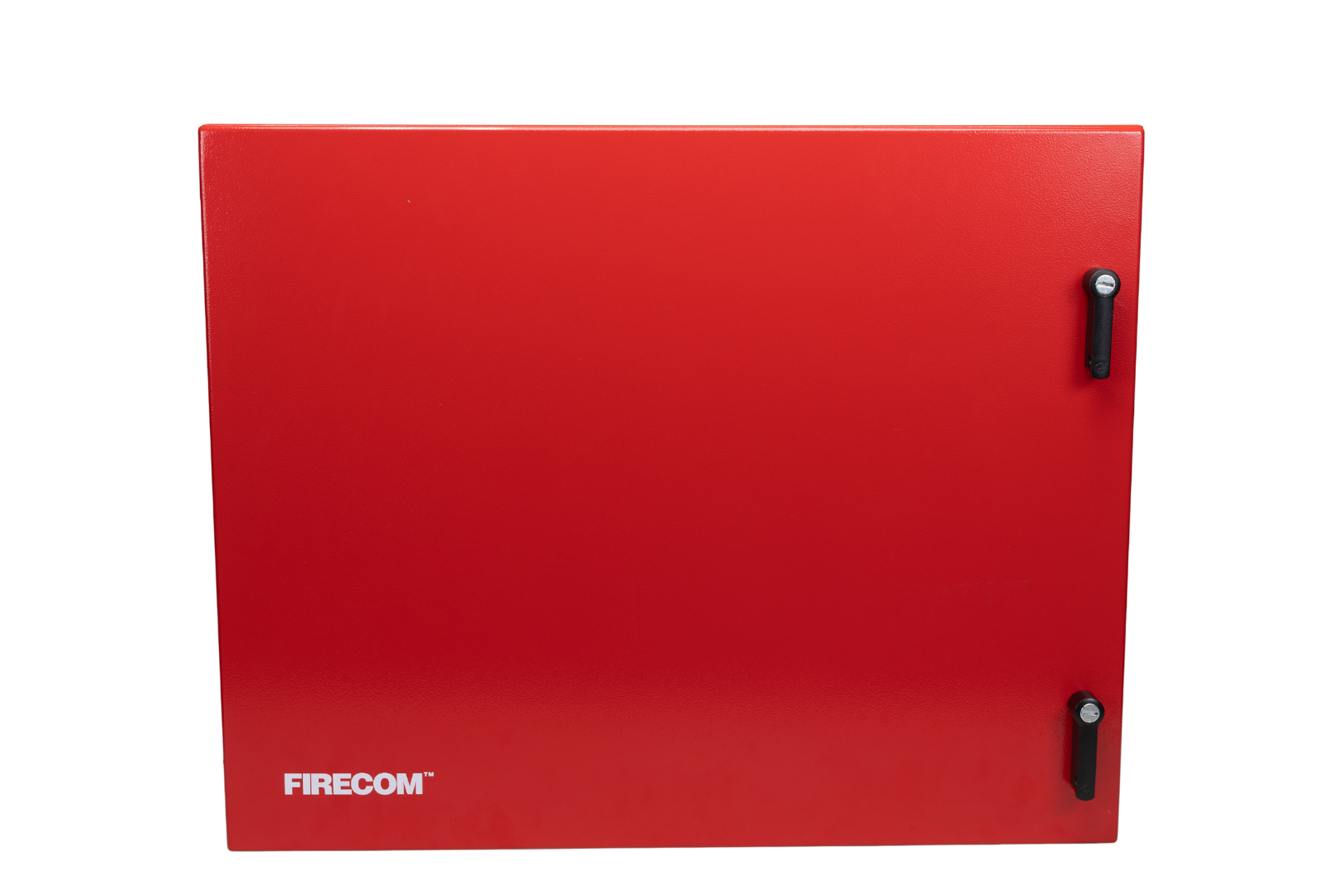

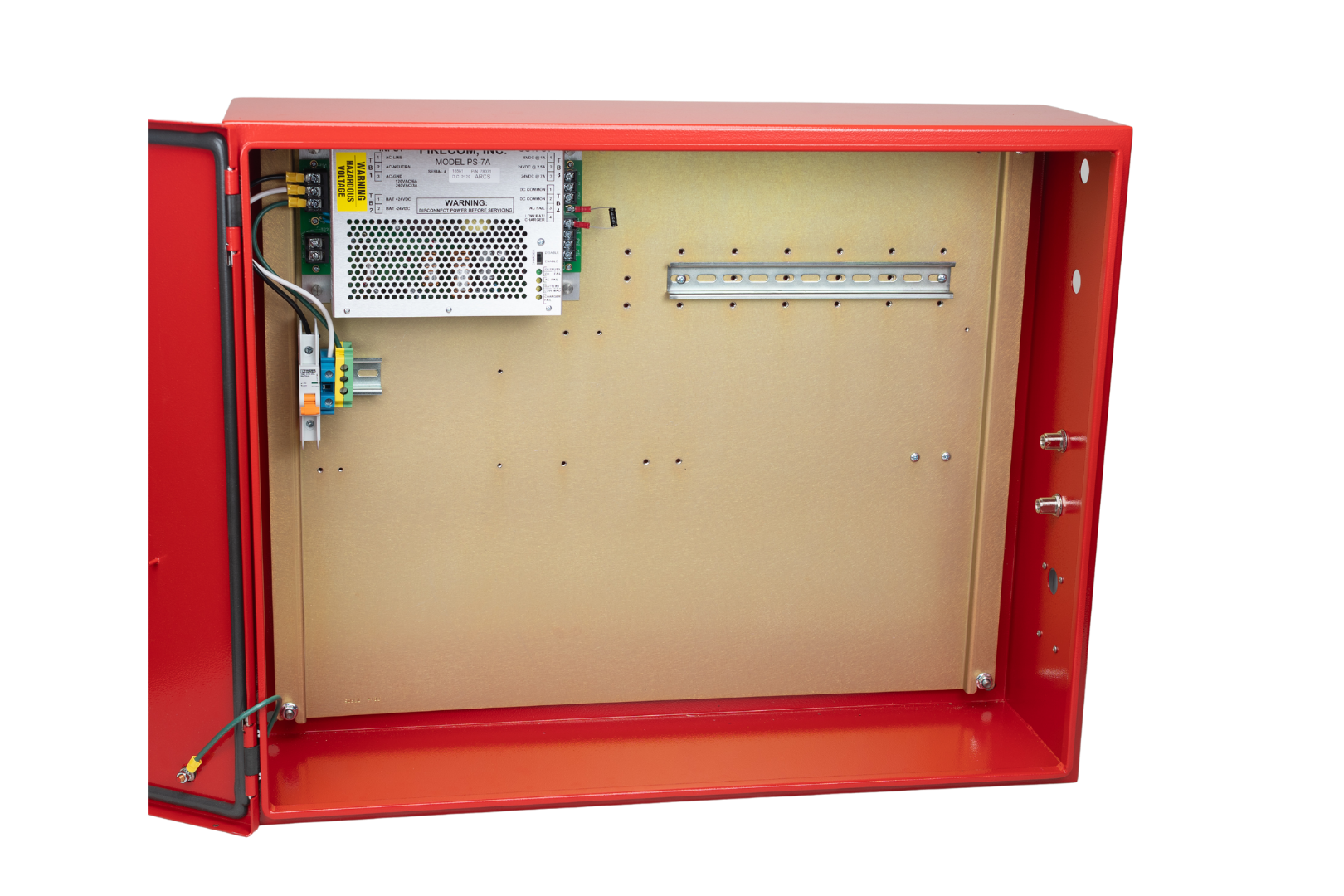

The Firecom BBPKG-2430 Bravelink is capable of providing continuous DC voltage for Bi-Directional Amplifier (BDA) units. The BBPKG-2430 is a NEMA 4 enclosure with a power supply and batteries along with microprocessor controlled logic boards. The BBPKG-2430 includes a 7 amp 24VDC power supply with seal lead-acid batteries for 12 or 24 hour backup time. An integral battery charger with AC Failure, Low Battery & Charger Fail indicators are also included.

Product Features

  • 120VAC or 240VAC Input
  • 24VDC @ 7A Output
  • AC Failure Indicator
  • Low Battery Failure Indicator
  • Charger Fail Indicator
  • All Outputs Power Limited
  • Integral Battery Charger
  • Remote Annunciator Output
  • Form ‘C’ Contact Trouble Indicators
